Silent Diesel Genset

Payment Type: L/C,T/T, cash
Incoterm: FOB,CFR
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Type: Basic Diesel Generator

Installation Method: Fixed

Stroke: Four Stroke

Cooling Method: Water Cooling

Output Type: AC Three Phase

Speed: Speed

Conditions of Use: Land Use

Usage: Common Units

Landuse Type of Unit: Ordinary

Excitation Mode: AC Rotating Exciter

Additional Info

Transportation: Ocean,Land

Place of Origin: China

Product Description

Silent Type Generator Set :Members of our products development team are rich in professional skills and familiar with products. With the help of advanced development tools and management platforms, we will always be ready to provide best service to all our customs.

General specifications of soundproof canopy:
Modular design
Anti-corrosion powder coated
Insulated with acoustic foam lining
Central lifting ring, exhaust pipe can be removed which is easy for transportation
Lockable doors with key
Protective mesh for rotating parts
Exterior emergency stop push button
Thermally insulated engine exhaust system
Panel observing window
Access to radiator filling or cap
20', 30' or 40' container canopy is optional
Color is optional
Fuel gauge or lube drain valve is optional
Normal or super soundproof canopy is optional
Base frame fuel tank or profile fuel tank is optional
The muffler's fixed position depend on the output power of gen-set

Silent generator set canopy:
* With special treated steel sheet
* StaiVess steel locks
* Control panel viewing window for monitoring the status of the generator set
* Good ventilation system and anti-heat radiation struction
* Effective anti-vibration devices to ensure the geneartor set run steadily
* Super silent materials inside to ensure the noise lower than 68 dB 7 meters away
* Emergency stop button mounted outside
* Side lockable door easy for maintenance and installation
* Lube oil and cooling water drains piped to exterior of the canopy
* Fuel tank built-in with level gauge

Cummins engine diesel generator set:
Options for the diesel generaor set:
Soundproof canopy type, trailer type
50Hz/60Hz, 1500rpm/1800rpm
Single phase/three phase four lines

Generator set feature:
Engine Features:
* Super power, PT fuel system, ultra-high injection pressure, sufficent combustion, low fuel consumption and good economic performances.
* Replaceable wet cylinder sleeves, effective cooling system, good spare parts commonality, high product serialization, easy maintenance and low failure.

Diesel Engine Type:
* Working cycle: Four-strokes
* Combustion model: Direct injection
* Starting way: DC Batteries
* Cooling way: Radiator with fan & water tank

The Electrical Performance of Diesel Generator Sets
* Power factor: 0.8(lagging)
* Connection way: Three phase four lines
* Ambient temperature: -40C~52C
* Steady voltage regulation rate: ± 1%; Transient voltage regulation rate: +20~-15%
* Steady frequency regulation rate: ± 1%; Transient frequency regulation rate: +10~--7%
* Voltage fluctuation rate: 0.5%
* Frequency fluctuation rate: 0.5%

AC Alternator
* Standard brands: Etone, Leroy Somer
* Optional brands: Marathon\Stamford
* Excitation method: Brushless self-excitation
* Isulation grade: H
* Protection grade: IP21-IP23
* Electromagnetic interference: THF<2%, TIF<50

Control System
* Standard matching brands: Smartgen and Comap
* Optional brands: Harson, Deepsea
* LED/Graphics/meters indicate unit running parameters
* High water temperature, low oil pressure, low speed, overspeed and others alarm and protected
* Automatically start switching when the main power service fails(optional)
* Multi-gensets with automatic parallel connection control module(optional)

* Functions of remote control interface, remote control, remote test and remote signal(optional)

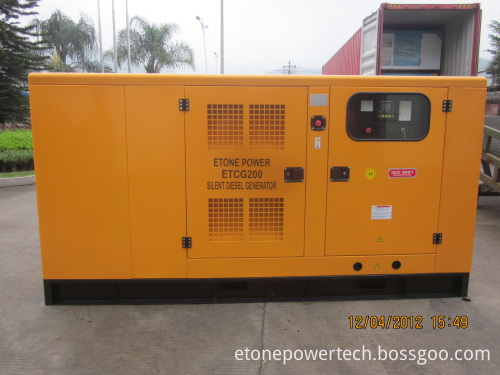

ETCG200 (1)

ETCG200 (2)ETCG200 (4)
